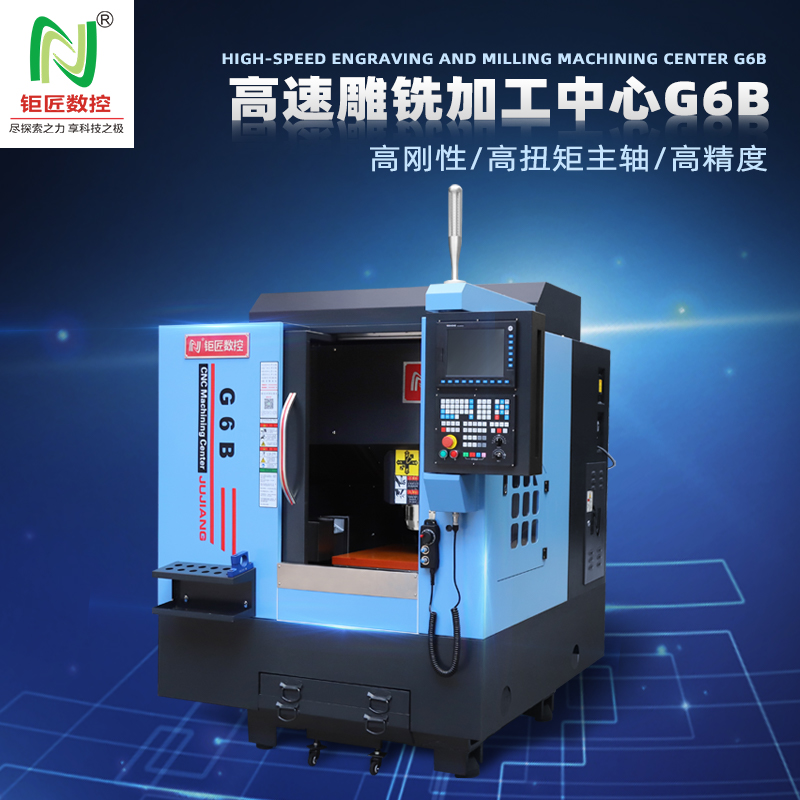

G6B (Weihong NK300 system + 4.5KW pneumatic spindle+Tool magazine 10T）Technical parameters
Technical Parameters
| Model |
model |
Unit) |
|
| Itinerary Travel |
| X-axis travel |
X-axis travel |
mm |
620 |
| Y-axis travel |
Y-axis travel |
mm |
620 |
| Z-axis travel |
Z-axis travel |
mm |
180 |
| Gantry width (inside) |
Gantry width （inside) |
mm |
700 |
| Distance from spindle end face to work table |
Distance from guide plane to spindle center |
mm |
50-230 |
| Workbench Worktable |
| Table size |
Worktable size (L×W) |
mm |
600×600 |
| Maximum load-bearing |
Maximum load |
kg |
260 |
| T-slot |
T-slot |
mm |
6-14-100 |
| Spindle Spindle |
| Spindle speed |
Spindle Speed |
.rpm |
10000-30000 |
| Spindle power |
Spindle motor power |
KW |
4.5 |
| Spindle spring chuck |
Spindle collet chuck |
|
ER25 |
| Loose knife way |
Unlock tool way |
|
Pneumatic |
| Tool magazine capacity |
Tool magazine Capacity |
T |
10 |
| Federate |
| X/Y/Z express displacement |
Ted X/Y/Z axis express displacement |
mm/min |
22000 |
| Cutting feed rate |
Cutting feed rate |
mm/min |
20000 |
| Accuracy |
| Positioning accuracy |
Pointing accuracy |
mm |
±0.006/300 |
| Repeatable positioning accuracy |
Repeat ability accuracy |
mm |
±0.003/300 |
| Machine information |
| Machine tool dimensions |
Machine dimension (L×W×H) |
mm |
1760×2250×1900 |
| Machine weight |
Machine weight |
kg |
2300 |
| Power demand (power/current) |
Power requirement |
KVA |
7 |
※As the company is constantly improving its products，Therefore, the company reserves the right to change the design and specifications and configuration at any time without notice，
If patronized，Please check if the specifications have changed!
G6B（The new generation 21MA-ESystem +4.5KW pneumatic spindle+Tool magazine 10T）Technical parameters
Technical Parameters
| Model |
model |
Unit) |
|
| Itinerary Travel |
| X-axis travel |
X-axis travel |
mm |
620 |
| Y-axis travel |
Y-axis travel |
mm |
620 |
| Z-axis travel |
Z-axis travel |
mm |
180 |
| Gantry width (inside) |
Gantry width （inside) |
mm |
700 |
| Distance from spindle end face to work table |
Distance from guide plane to spindle center |
mm |
50-230 |
| Workbench Worktable |
| Table size |
Worktable size (L×W) |
mm |
600×600 |
| Maximum load-bearing |
Maximum load |
kg |
260 |
| T-slot |
T-slot |
mm |
6-14-100 |
| Spindle Spindle |
| Spindle speed |
Spindle Speed |
.rpm |
10000-30000 |
| Spindle power |
Spindle motor power |
KW |
4.5 |
| Spindle spring chuck |
Spindle collet chuck |
|
ER25 |
| Loose knife way |
Unlock tool way |
|
Pneumatic |
| Tool magazine capacity |
Tool magazine Capacity |
T |
10 |
| Federate |
| X/Y/Z express displacement |
Ted X/Y/Z axis express displacement |
mm/min |
22000 |
| Cutting feed rate |
Cutting feed rate |
mm/min |
20000 |
| Accuracy |
| Positioning accuracy |
Pointing accuracy |
mm |
±0.006/300 |
| Repeatable positioning accuracy |
Repeat ability accuracy |
mm |
±0.003/300 |
| Machine information |
| Machine tool dimensions |
Machine dimension (L×W×H) |
mm |
1760×2250×1900 |
| Machine weight |
Machine weight |
kg |
2300 |
| Power demand (power/current) |
Power requirement |
KVA |
7 |
※As the company is constantly improving its products，Therefore, the company reserves the right to change the design and specifications and configuration at any time without notice，
If patronized，Please check if the specifications have changed!
G6B（Weihong NK300System +4.5KW pneumatic spindle+Tool magazine 10T）Model optional configuration (Additional charges apply）
| serial number |
Accessory name |
Product model |
quantity |
Remarks |
| 1 |
̈Cast iron substrate + aluminum plate + bakelite board |
|
1piece |
|
| 2 |
̈ To select a tool pairing instrument |
GZ-72 |
1piece |
|
| 3 |
̈ To choose the distribution spindle plus encoder |
|
1cover |
|
| 4 |
̈Handheld refractometer should be optional |
0-60 |
1piece |
|
| 5 |
̈ Optional lock knife wrench |
ER25 special lock knife wrench |
1piece |
|
| 6 |
̈ Optional locking tool holder |
BT30 non-card lock tool holder |
1piece |
|
| 7 |
̈Precision cutting head is optional |
BT30-ER25 non-clamping precision cutter heads |
1piece |
|
| 8 |
̈ Precision spring clip is optional |
ER25 3.175/3/4/6/8/10/12 |
1 each |
|
| 9 |
̈ Flat nose pliers should be optional |
6inch |
1piece |
|
