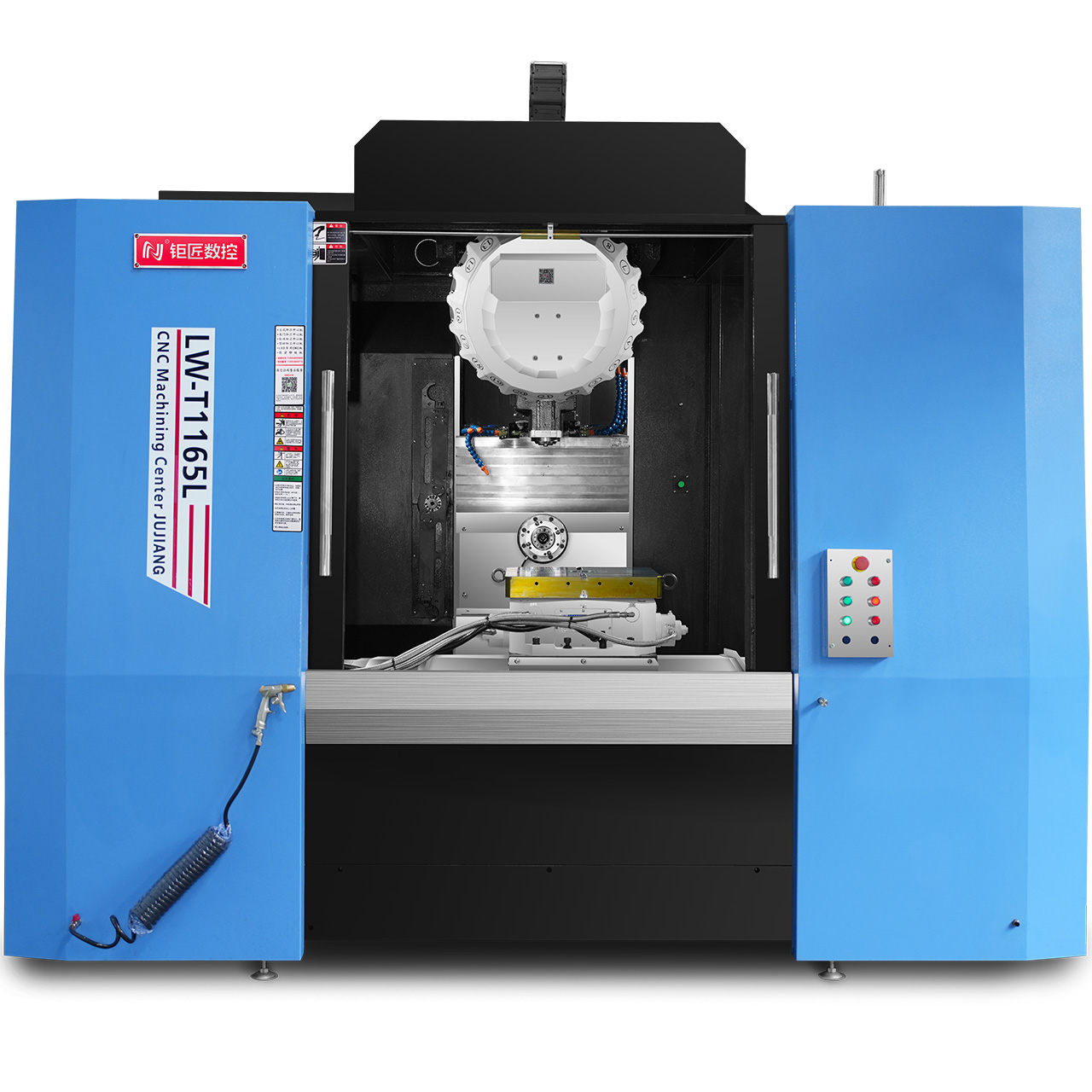

LWT1165L (Fanuc 5-pack system + direct-coupled BT30 spindle + direct-coupled BT40 spindle + clamp arm type 21T vertical servo tool changer + cutter arm type 24 horizontal T tool magazine)Technical parametersTechnical Parameters
| Model | model | Unit | |
| Itinerary Travel | |||
| X-axis travel(The turntable moves left and right) | X-axis travel | mm | 1100 |
| Y1 axis travel(The saddle moves back and forth) | Y1-axis travel | mm | 700 |
| Y2 axis travel(The horizontal headstock is moved up and down) | Y2-axis travel | mm | 500 |
| Z1 axis travel (vertical headstock up and down) | Z1-axis travel | mm | 530 |
| Z2 axis travel (saddle moving back and forth) | Z2-axis travel | mm | 700 |
| Vertical spindle center to horizontal spindle end face | Distance from vertical spindle center to horizontal spindle end face | mm | 655 |
| Distance from vertical spindle end face to work table | Distance from vertical spindle end face to workbench surface | mm | 170-700 |
| Horizontal spindle centerline to table surface distance | Distance from horizontal spindle centerline toworkbench surface | mm | 50-550 |
| The distance from the horizontal spindle end face to the center line of the table | Distance from the end face of the horizontal spindle to the centerline of the workbench | mm | 305-1005 |
| Vertical spindle centerline to column rail distance | Distance from spindle center to column rail | mm | 797 |
| Workbench Worktable | |||
| Table size | Worktable size | mm | 500×500 |
| Maximum load bearing capacity of the table | Worktable maximum load | kg | 300 |
| T-slot | Worktable T-slot | mm | 5-18-100 |
| Minimum set angle | Minimum setting angle | Deg. | 90° |
| Cumulative segmentation accuracy | Accumulated segmentation accuracy | Sec. | 4″ |
| Repeatability | Repeatability | Sec. | ±1″ |
| Maximum swing diameter | Maximum turning diameter | mm | 1166 |
| Spindle Spindle | |||
| Spindle speed(Vertical/horizontal) | Spindle Speed | .rpm | 15000/12000 |
| Spindle power(Vertical/horizontal) | Spindle motor power | KW | 5.5/7.5 |
| Spindle taper hole(Vertical/horizontal) | Spindle taper hole | BT30-φ100/
BT40-φ140 |
|
| Spindle spring chuck(Vertical/horizontal) | Spindle collet chuck | ER25/C32 | |
| Loose knife way(Vertical/horizontal) | Unlock tool way | Mechanical Knife Punching/
Pneumatic booster cylinder knife |
|
| Clamp armTool magazine | |||
| Vertical tool changer capacity | Tool magazine Capacity | T | 21 |
| Horizontal tool magazine capacity | Tool magazine Capacity | T | 24 |
| Federate | |||
| X/Y/Z1/Z2 axis express displacement | Ted X/Y/Z1/Z2 axis express displacement | mm/min | 36000 |
| Cutting feed rate | Cutting feed rate | mm/min | 12000 |
| Accuracy | |||
| Positioning accuracy | Pointing accuracy | mm | ±0.003/300 |
| Repeatable positioning accuracy | Repeat ability accuracy | mm | ±0.002/300 |
| Machine information | |||
| Machine tool dimensions | Machine dimension (L×W×H) | mm | 3300*3300*3200 |
| Machine weight
|
Machine weight | kg | 7000 |
| Power demand (power/current) | Power requirement | KVA | 25 |
※As the company is constantly improving its products，Therefore, the company reserves the right to change the design and specifications and configuration at any time without notice，
