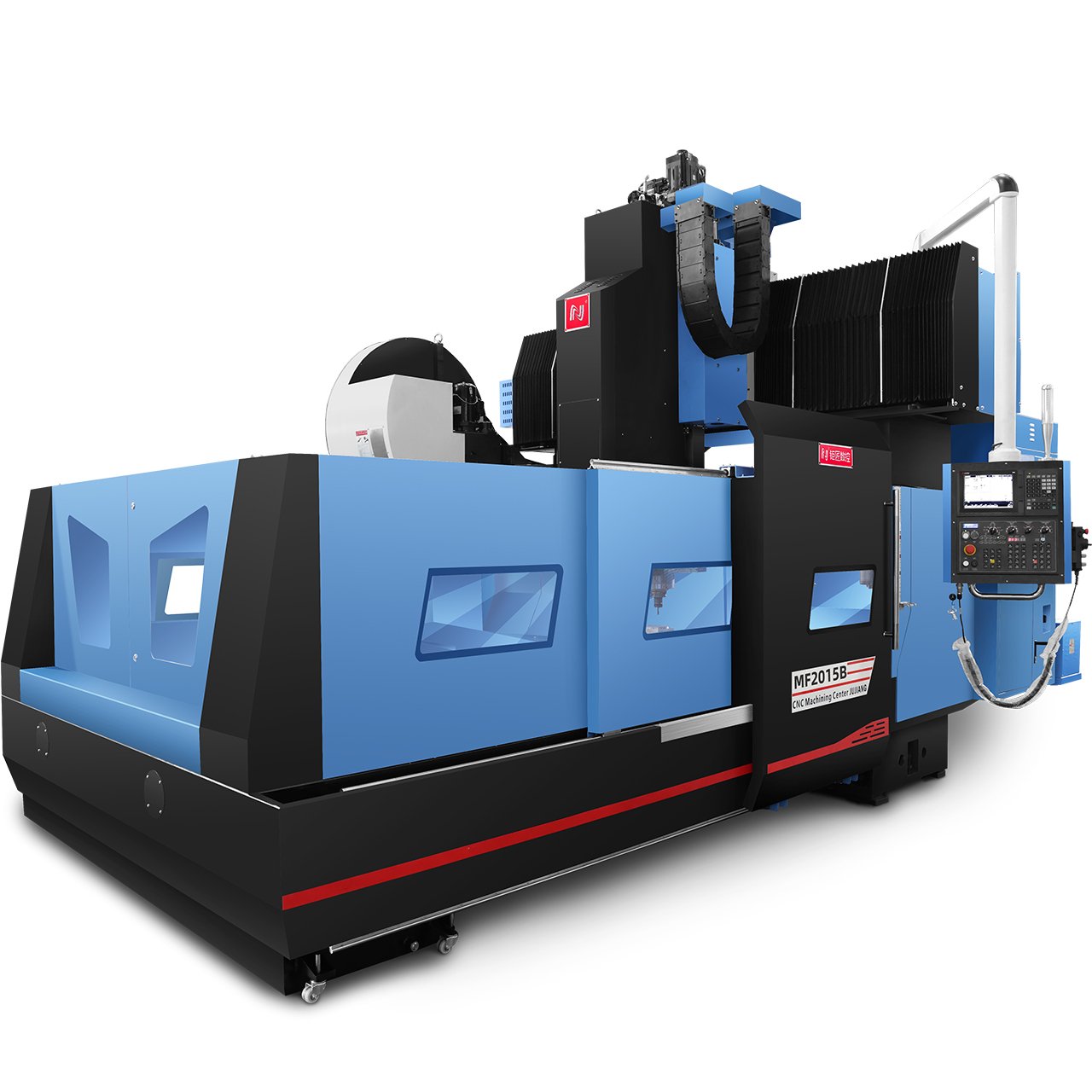

MF2015B Technical Parameters (Fanuc 5 packsControl system + belt type BT50 spindle）
| Model |
model |
Unit) |
|
| Itinerary Travel |
| X-axis travel |
X-axis travel |
mm |
2000 |
| Y-axis travel |
Y-axis travel |
mm |
1700 |
| Z-axis travel |
Z-axis travel |
mm |
800 |
| Distance from spindle end face to work table |
Distance from guide plane to spindle center |
mm |
200-1000 |
| The middle distance between the inside of the two columns |
Gantry width （inside) |
mm |
1500 |
| The distance from the work surface to the beam |
Distance from table top to beam |
mm |
1100 |
| Workbench Worktable |
| Table size |
Worktable size (L×W) |
mm |
2200×1400 |
| Maximum load-bearing |
Maximum load |
kg |
5000 |
| T-slot |
T-slot |
mm |
7-22-200 |
| Spindle Spindle |
| Spindle speed |
Spindle Speed |
.rpm |
6000 |
| Spindle power |
Spindle motor power |
KW |
18.5 |
| Spindle taper hole |
Spindle taper hole |
|
BT50 |
| Spindle spring chuck |
Spindle collet chuck |
|
C42 |
| Spindle sleeve outer diameter |
Outside diameter of spindle sleeve |
mm |
Φ190 |
| Loose knife way |
Unlock tool way |
|
Pneumatic booster cylinder knife |
| Federate |
| X/Y/Z express displacement |
Ted X/Y/Z axis express displacement |
mm/min |
12000 |
| Cutting feed rate |
Cutting feed rate |
mm/min |
8000 |
| Accuracy |
| Positioning accuracy |
Pointing accuracy |
mm |
±0.005/300 |
| Repeatable positioning accuracy |
Repeat ability accuracy |
mm |
±0.003/300 |
| Machine information |
| Machine tool dimensions |
Machine dimension (L×W×H) |
mm |
5900*4000*4200 |
| Machine weight |
Machine weight |
T |
18 |
| Power demand (power/current) |
Power requirement |
KVA |
35 |
As the company is constantly improving its products，Therefore, the company reserves the right to change the design and specifications and configuration at any time without notice。
If patronized，Please check if the specifications have changed!
MF2015B technical parameters (Fanuc 5 pack control system + belt type BT50 spindle)
Technical Parameters
| Model |
model |
Unit) |
|
| Itinerary Travel |
| X-axis travel |
X-axis travel |
Mm |
2000 |
| Y-axis travel (including tool change stroke) |
Y-axis travel |
Mm |
1600 |
| Z-axis travel |
Z-axis travel |
Mm |
800 |
| Distance from spindle end face to work table |
Distance from guide plane to spindle center |
Mm |
200-1000 |
| The middle distance between the inside of the two columns |
Gantry width （inside) |
Mm |
1500 |
| The distance from the work surface to the beam |
Distance from table top to beam |
Mm |
1020 |
| Workbench Worktable |
| Table size |
Worktable size (L×W) |
Mm |
2200*1300 |
| Maximum load bearing capacity of the table |
Maximum load |
Kg |
5000 |
| T-slot (size * number of slots * spacing) |
T-slot |
Mm |
22*7*180 |
| Spindle Spindle |
| Spindle speed |
Spindle Speed |
Rpm |
6000 |
| Spindle power |
Spindle motor power |
KW |
22 |
| Spindle taper hole |
Spindle taper hole |
|
BT50 |
| Spindle sleeve outer diameter |
Outside diameter of spindle sleeve |
Mm |
φ190 |
| Loose knife way |
Unlock tool way |
|
Hydraulic |
| Federate |
| X/Y/Z express displacement |
Ted X/Y/Z axis express displacement |
mm/min |
12000 |
| Cutting feed rate |
Cutting feed rate |
mm/min |
8000 |
| Accuracy |
| Positioning accuracy |
Pointing accuracy |
mm |
0.01 |
| Repeatable positioning accuracy |
Repeat ability accuracy |
mm |
0.005 |
| Machine information |
| Machine tool dimensions |
Machine dimension (L×W×H) |
mm |
5600*3200*4200 |
| Machine weight |
Machine weight |
T |
19.5 |
| Power demand (power/current) |
Power requirement |
KVA |
35 |
※As the company is constantly improving its products，Therefore, the company reserves the right to change the design and specifications and configuration at any time without notice，
If patronized，Please check if the specifications have changed!
MF2015B (Mitsubishi M80B + Belt BT50 spindle)Technical parametersTechnical Parameters
| Model |
model |
Unit) |
|
| itineraryTravel |
| X-axis travel |
X-axis travel |
mm |
2000 |
| Y-axis travel |
Y-axis travel |
mm |
1700 |
| Z-axis travel |
Z-axis travel |
mm |
800 |
| Distance from spindle end face to work table |
Distance from guide plane to spindle center |
mm |
200-1000 |
| The middle distance between the inside of the two columns |
Gantry width （inside) |
mm |
1500 |
| The distance from the work surface to the beam |
Distance from table top to beam |
mm |
1100 |
| workbenchWorktable |
| Table size |
Worktable size |
mm |
2200X1400 |
| T-slot |
Maximum load |
mm |
7-22-200 |
| Maximum load-bearing |
Maximum load |
kg |
5000 |
| spindleSpindle |
| Spindle speed |
Spindle Speed |
.rpm |
6000 |
| Spindle power |
Spindle motor power |
KW |
18.5Kw |
| Spindle taper hole |
Spindle taper hole |
|
BT50-φ190 |
| Spindle spring chuck |
Spindle collet chuck |
|
C42 |
| Loose knife way |
Unlock tool way |
|
Pneumatic booster cylinder knife |
| Knife arm type tool magazineTool magazine |
| Tool magazine capacity |
Tool magazine Capacity |
T |
24 |
| Feed rateFederate |
| X/Y/Z express displacement |
Ted X/Y/Z axis express displacement |
mm/min |
12000 |
| Cutting feed rate |
Cutting feed rate |
mm/min |
8000 |
| precisionAccuracy |
| Positioning accuracy |
Pointing accuracy |
mm |
±0.005/300 |
| Repeatable positioning accuracy |
Repeat ability accuracy |
mm |
±0.003/300 |
| Machine informationMachine information |
| Machine tool dimensions |
Machine dimension (L×W×H) |
mm |
6200*4300*4200 |
| Machine weight |
Machine weight |
kg |
18000 |
| Power demand (power/current) |
Power requirement |
KVA |
35 |
※As the company is constantly improving its products，Therefore, the company reserves the right to change the design and specifications and configuration at any time without notice。
If patronized，Please check if the specifications have changed!
