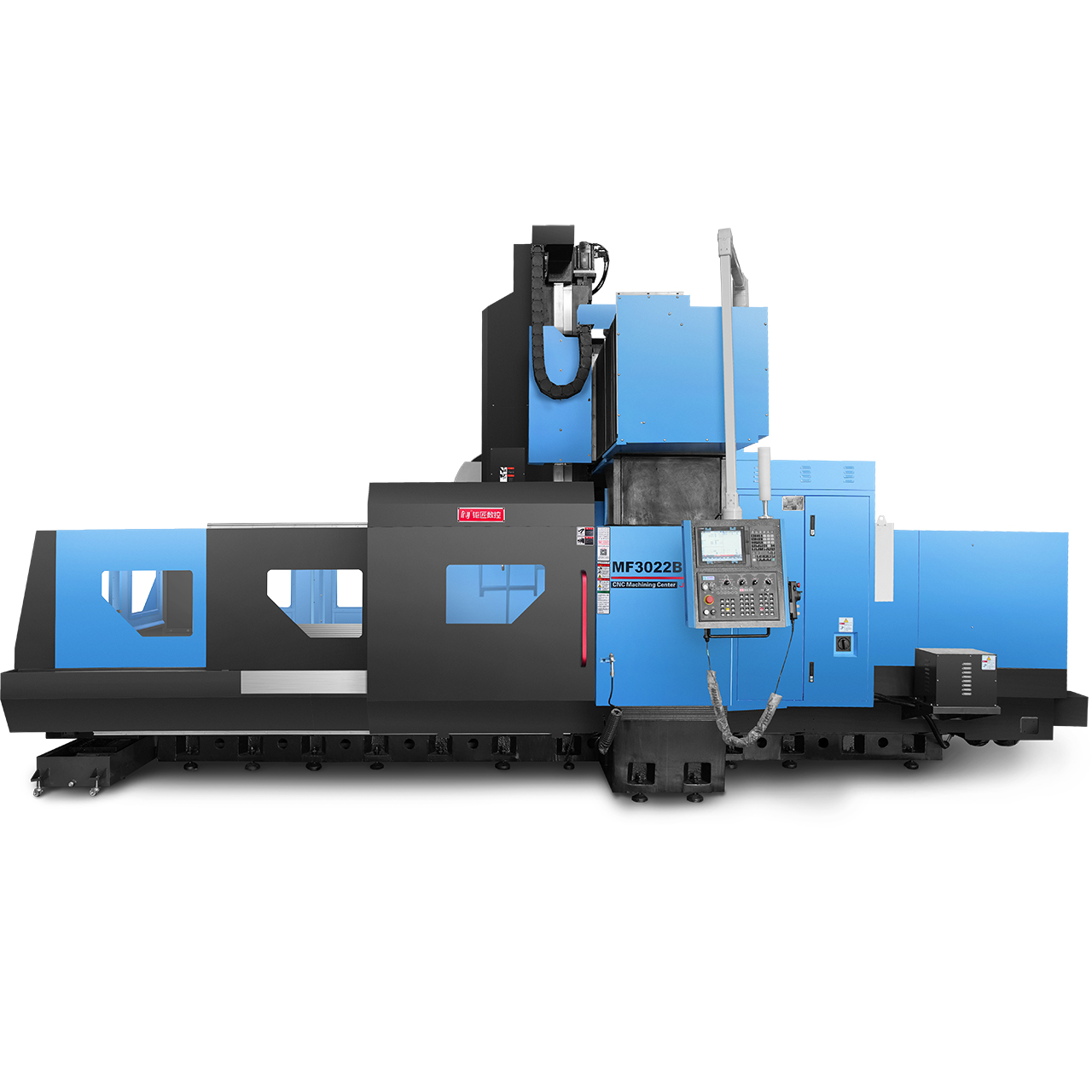

MF3022B - Gantry machining center

MF3022B (Mitsubishi M80B system + belt type BT50 spindle)Technical parameters

Technical Parameters

Model	model	Unit)
Itinerary Travel
X-axis travel	X-axis travel	mm	3000
Y-axis travel (including tool change stroke)	Y-axis travel	mm	2200
Z-axis travel	Z-axis travel	mm	1000
Distance from spindle end face to work table	Distance from guide plane to spindle center	mm	200-1200
The distance from the center of the spindle to the column		mm	375
The middle distance between the inside of the two columns	Gantry width （inside)	mm	2200
The distance from the work surface to the beam	Distance from table top to beam	mm	1395
Workbench Worktable
Table size	Worktable size (L×W)	mm	3000×1800
Maximum load bearing capacity of the table	Maximum load	kg	9000
T-slot (size * number of slots * spacing)	T-slot	mm	9-22-180
Spindle Spindle
Spindle speed	Spindle Speed	.rpm	6000
Spindle power	Spindle motor power	KW	18.5
Spindle taper hole	Spindle taper hole		BT50
Spindle sleeve outer diameter	Outside diameter of spindle sleeve	mm	Φ190
Loose knife way	Unlock tool way		Pneumatic loose knives
Federate
X/Y/Z express displacement	Ted X/Y/Z axis express displacement	mm/min	12000/12000/10000
Cutting feed rate	Cutting feed rate	mm/min	6000
Accuracy
Positioning accuracy	Pointing accuracy	mm	±0.005/300
Repeatable positioning accuracy	Repeat ability accuracy	mm	±0.003/300
Machine information
Machine tool dimensions	Machine dimension (L×W×H)	mm	8200×5000×4100
Machine weight	Machine weight	T	28
Power demand (power/current)	Power requirement	KVA	40

※As the company is constantly improving its products，Therefore, the company reserves the right to change the design and specifications and configuration at any time without notice，

If patronized，Please check if the specifications have changed!

MF3022B (Mitsubishi M80B system + belt type BT50 spindle)Optional configuration of the model (charged)

serial number	Accessory name	Product model	quantity	Remarks
1	̈BT50 tool magazine should be selected as an option	Robotic arm BT50-24T	1cover
2	̈Gearbox is optional		1cover
3	̈ Manual 90 angle head is optional	BT50-90	1cover
4	̈ Automatic 90 angle head is optional	BT50-90	1cover
5	̈Handheld refractometer should be optional	0-60	1piece
6	̈ Optional lock knife wrench	C42 special wrench	1piece
7	̈ Optional locking tool holder	BT50-C42 lock tool holder(With card slot)	1piece
8	̈Precision cutting head is optional	BT50-C42-110mm	1piece
9	̈ Precision spring clip is optional	C42 6/8/10/12/16/20	1 each
10	̈ To choose a combination pressure plate	M20	1cover
