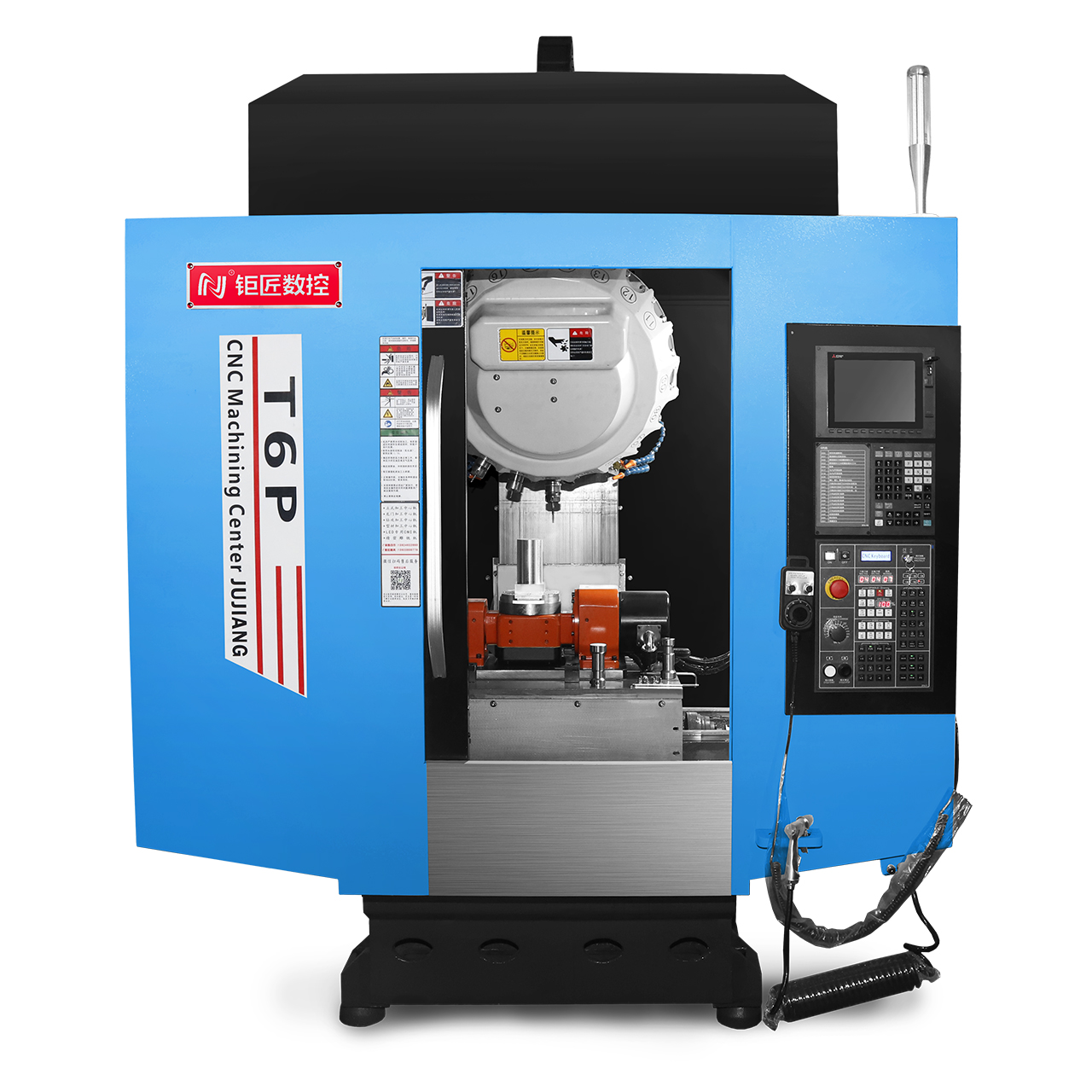

T6P - Drill and Tap Center - Jutuo Intelligence

T6P（Fanuc 5-pack system + direct-coupled BT30 spindle）Technical parameters

Technical Parameters

Model	model	Unit
Itinerary Travel
X-axis travel	X-axis travel	mm	600
Y-axis travel	Y-axis travel	mm	460
Z-axis travel	Z-axis travel	mm	320
Distance from spindle end face to work table	Distance from guide plane to spindle center	mm	180-500
Workbench Worktable
Table size	Worktable size (L×W)	mm	700*500
Maximum load-bearing	Maximum load	kg	300
T-slot	T-slot	mm	3-14-140
Spindle Spindle
Spindle speed	Spindle Speed	.rpm	20000
Spindle power	Spindle motor power	KW	5.5
Spindle taper hole	Spindle taper hole		ER25
Loose knife way	Unlock tool way		Mechanical
Clamp armTool magazine
Tool magazine capacity	Tool magazine Capacity	T	21
Maximum tool length	Max tool length	mm	150
Maximum tool diameter/empty knife	Maximum tool diameter	mm	60/80
Maximum tool weight	Maximum tool weight	Kg	3
Tool change time	Tool change time	Sec	0.3~1.2
Federate
X/Y/Z express displacement	Ted X/Y/Z axis express displacement	mm/min	48000
Cutting feed rate	Cutting feed rate	mm/min	12000
Accuracy
Positioning accuracy	Pointing accuracy	mm	0.01
Repeatable positioning accuracy	Repeat ability accuracy	mm	0.005
Machine information
Machine tool dimensions	Machine dimension (L×W×H)	mm	180024002300
Machine weight	Machine weight	kg	3200
Power demand (power/current)	Power requirement	KVA	15
