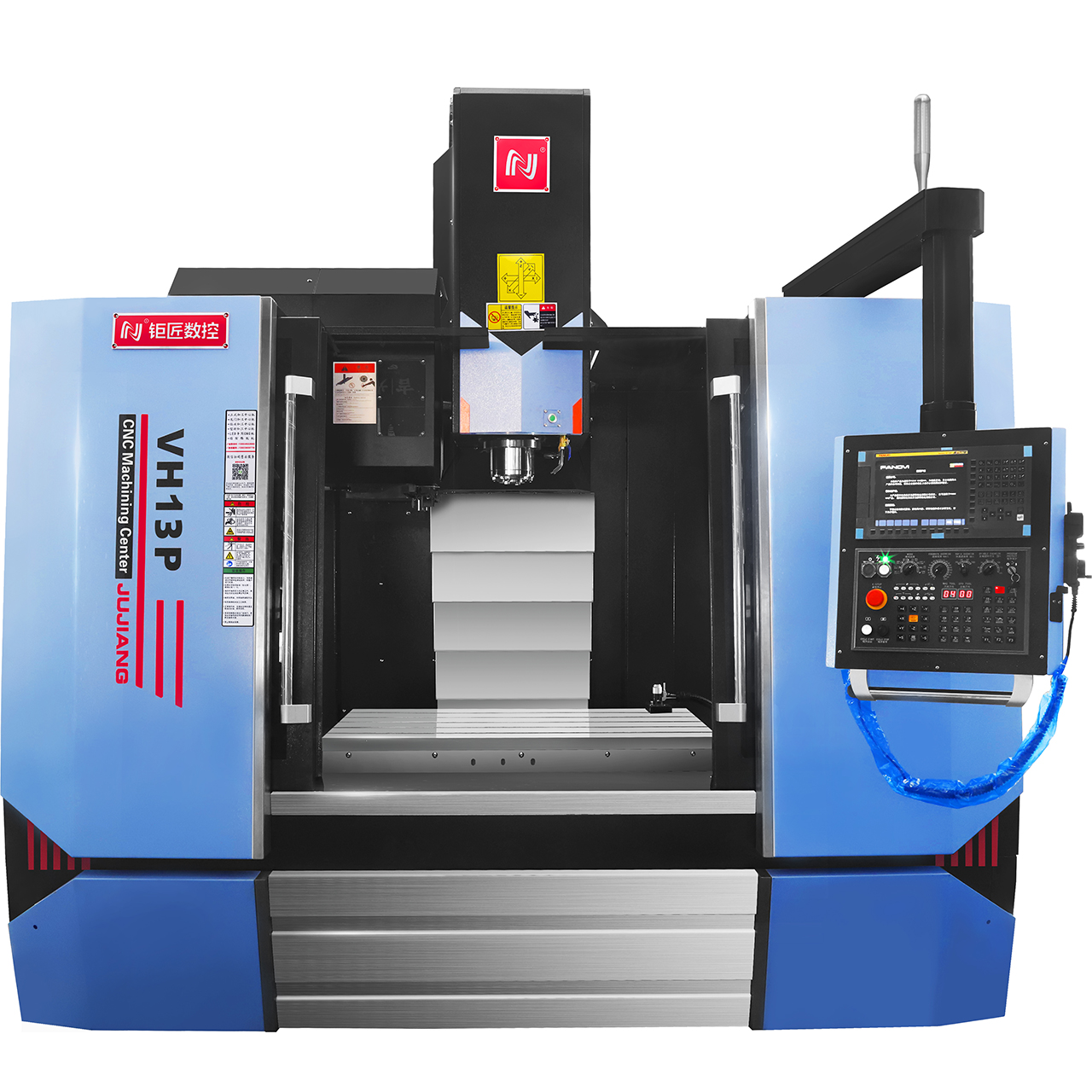

VH13P - High Speed Vertical Milling Center

VH13P (Fanuc 3 Bags + Direct Coupled BT40 Spindle + Arm 24T Tool Magazine)Technical parameters

Technical Parameters

Model	model	Unit)
itineraryTravel
X-axis travel	X-axis travel	mm	1300
Y-axis travel	Y-axis travel	mm	700
Z-axis travel	Z-axis travel	mm	700
Distance from spindle end face to work table	Distance from guide plane to spindle center	mm	110-810
The distance from the spindle centerline to the column guideway	Distance from spindle center to column rail	mm	750
workbenchWorktable
Table size	Worktable size (L×W)	mm	1500×700
Maximum load-bearing	Maximum load	kg	1000
T-slot	T-slot	mm	5-18-125
spindleSpindle
Spindle speed	Spindle Speed	.rpm	15000
Spindle power	Spindle motor power	KW	11
Spindle taper hole	Spindle taper hole		BT40-φ150
Spindle spring chuck	Spindle collet chuck		C32
Loose knife way	Unlock tool way		Pneumatic booster cylinder knife
Knife arm type tool magazineTool magazine
Tool magazine capacity	Tool magazine Capacity	T	24
Feed rateFederate
X/Y/Z express displacement	Ted X/Y/Z axis express displacement	mm/min	30000/30000/30000
Cutting feed rate	Cutting feed rate	mm/min	15000
precisionAccuracy
Positioning accuracy	Pointing accuracy	mm	±0.003/300
Repeatable positioning accuracy	Repeat ability accuracy	mm	±0.002/300
Machine informationMachine information
Machine tool dimensions	Machine dimension (L×W×H)	mm	340032003200
Machine weight	Machine weight	kg	10800
Power demand (power/current)	Power requirement	KVA	35

※As the company is constantly improving its products，Therefore, the company reserves the right to change the design and specifications and configuration at any time without notice，

If patronized，Please check if the specifications have changed!

sequencenumber	Accessory name	Product model	quantity	Remarks
1	̈Optional five-shaft (turboworm)	Body FAR210 motor + drive	1cover
2	̈Optional five-shaft (turboworm)	Body FHR255 motor + drive	1cover
3	̈Optional five-shaft (turboworm)	Body FHR320 motor + drive	1cover
4	̈ Optional five-shaft (harmonic gear)	Body JS210 motor + drive	1cover
5	̈ Optional five-shaft (harmonic gear)	Body JS255 motor + drive	1cover
6	̈ Optional four-axis (body)	Ontology AR210，Drive + motor	1cover
7	̈ Optional four-axis (body + disc tailstock)	Ontology AR210，Drive + motor，Disc tailstock RTA210，Block L，Bridge plate	1cover
8	̈ Optional four-axle (body + top tailstock)	Ontology AR210，Drive + motor，TJ210 top tailstock，Chuck flange	1cover
9	̈ Optional four-axis (body)	Ontology HR255，Drive + motor	1cover
10	̈ Optional four-axis (body + disc tailstock)	Ontology HR255，Drive + motor，Disc tailstock RTH255，Block L，Bridge plate	1cover
11	̈ Optional four-axle (body + top tailstock)	Ontology HR255，Drive + motor，TJ210 top tailstock，Chuck flange	1cover
12	̈ Optional four-axis (body)	Body HR320，Drive + motor	1cover
13	̈ Optional four-axis (body + disc tailstock)	Body HR320，Drive + motor，Disc tailstock RTH320，Block L，Bridge plate	1cover
14	̈ Optional four-axle (body + top tailstock)	Body HR320，Drive + motor，TJ320 Tailstock，Chuck flange	1cover
15	̈ Flat nose pliers should be optional	6inch	1piece
16	̈ An optional refractometer is required	Handheld 0-60	1piece
17	̈ Optional lock knife wrench	Dedicated to C32	1handful
18	̈ Optional locking tool holder	BT40 with clamping lock tool holder	1piece
19	̈Precision cutting head is optional	BT40-C32-105(With card slot)	1piece
20	̈ Precision spring clip is optional	C32 3/4/6/8/10/12/16	1 each
21	̈ To choose a U disk		1piece
22	̈ To choose a combination pressure plate	M16 Composite Platen	1cover
